ISO 10555-5 CERTIFIED // RADIO-OPAQUE FEP/PTFE

Vascular Access IV Cannula & Catheter Series

Precision peripheral intravenous catheters engineered with lubricated back-cut lancet trocars and ultra-thin wall radio-opaque catheter tubes for smooth, painless venipuncture with minimal vein trauma.

EXPLORE VARIATIONS & FLOW → REQUEST SAMPLE PACK

ISO 10555-5 COMPLIANT VASCULAR ACCESS FEP / PTFE Radio-Opaque Stripe

IV Cannula Variations & ISO Flow Simulator

Choose cannula architecture and gauge standard. Observe dynamic flow rate, flashback chamber optics, and vein trauma reduction.

MOST POPULAR CLINICAL STANDARD

IV Cannula with Injection Port & Wings

Features color-coded one-way silicone port valve for intermittent extra medication delivery without interrupting continuous infusion. Flexible angled wings for stable skin fixation.

ULTRA-COMPACT STERILE INFUSION

IV Cannula Plain (Without Port / Straight)

Sleek low-profile design without injection valve, ideal for sensitive skin, continuous closed infusion lines, and minimizing patient snagging or pressure sores.

OSHA & EU DIRECTIVE COMPLIANT SAFETY

Safety IV Cannula (Auto Needle-Stick Shield)

Automated passive clip shield encapsulates the sharp needle point upon withdrawal, completely eliminating accidental needle-stick injuries and blood splatter.

SELECT ISO 10555-5 COLOR-CODED GAUGE:

14G 45 mm

16G 45 mm

18G 45 mm

20G 32 mm

22G 25 mm

24G 19 mm

26G 19 mm

Gravity Flow Velocity: 61 ml / min

10 ml/min (26G Micro) 150 ml/min 385 ml/min (14G Trauma)

20G (Pink) Clinical Use: General adult IV infusion, routine medication, non-viscous solutions.

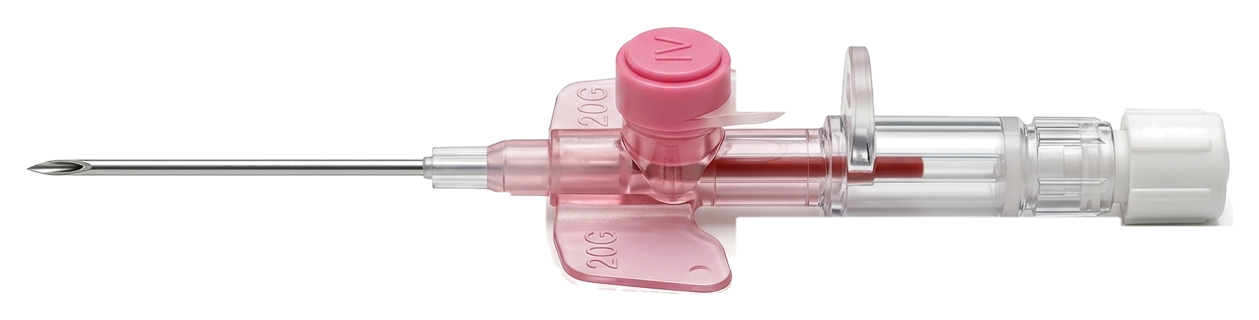

AI-DISPO Precision IV Cannula Real Image

External Diameter 1.1 mm

Catheter Length 32 mm

Export MOQ: 10,000 pcs / size (50 pcs/inner box, 1,000 pcs/master carton)

ENQUIRE 20G with Port & Wings →

ISO 10555-5 STANDARD COLOR & FLOW CODING

Peripheral IV Catheter Specification Matrix

GAUGE	COLOR CODE	OUTER DIA.	CATHETER LENGTH	GRAVITY FLOW RATE	CLINICAL INDICATION
14G	Orange	2.1 mm	45 mm	385 ml / min	Massive trauma resuscitation, rapid blood transfusions, cardiac surgery
16G	Grey	1.7 mm	45 mm	210 ml / min	Major surgery, high-volume fluid resuscitation, viscous infusion
18G	Green	1.3 mm	45 mm	105 ml / min	Blood administration, parenteral nutrition, routine operating room access
20G	Pink	1.1 mm	32 mm	61 ml / min	Most popular clinical standard, general adult IV therapy, antibiotic infusion
22G	Blue	0.9 mm	25 mm	36 ml / min	Elderly patients, oncology, pediatric routine fluid therapy, fragile veins
24G	Yellow	0.7 mm	19 mm	22 ml / min	Pediatrics, neonates, extremely delicate or sclerosed peripheral veins
26G	Purple	0.6 mm	19 mm	10 ml / min	Premature neonates, micro-vascular intensive care vascular access
